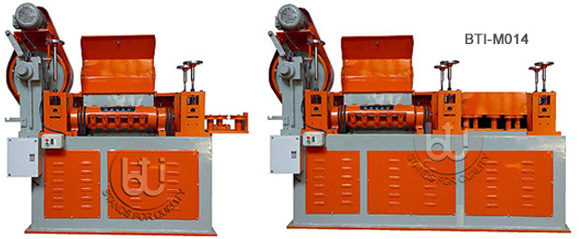

Wire Straightening and Cutting Machines BTI M-013 & BTI M-014

  Wire Straightening and Cutting Machine BTI M-013 & BTI M-14
Youtube small Product enquiry

WIRE STRAIGHTENING AND CUTTING MACHINES BTI M-013 & BTI M-014 DESCRIPTION:

BTI Wire Straightening and Cutting Machine M-013, M-014, is a heavy duty, high performance & premium grade machine. Suitable for straightening 5 mm to 14 mm mild steel, Stainless steel, Copper, Brass, TMT & Ribbed wire.

BTI M-013 machine is provided with two set of feed rollers for smooth wire feeding and in straightening section, one high speed heavy duty spinner with six station straightening dies and one set of (three nos.)horizontal pre-straightening rolls and BTI M-014 machine is provided with three set of feed rollers for smooth wire feeding and in straightening section, one high speed heavy duty spinner with six station straightening dies and one set of (five nos.)horizontal straightening rolls. It helps to reduce sharp bend of wire coil to facilitate straightening quality & smooth feeding.

Some applications includes  Manufacturing of Fasteners, Steel furniture, Locks, R.C.C Pipes, Kitchen wares, Spring making, "U" bolts, "J" Hooks, Bright Bars , Auto parts, Scooter Accessories, Ribbed / TMT Wires.

WIRE STRAIGHTENING AND CUTTING MACHINES BTI M-013 & BTI M-014 FULL SPECIFICATIONS:

MODEL BTI M-13 BTI M-14
In Thickness of Wire mm 5 to 13mm 6 to 14mm
In Length of Wire to be cut
automatically mm
63 to 1000 mm
Length can be increased as per requirement.
63 to 1000 mm
Length can be increased as per requirement.
Feeding Capacity per Min. 90' feet 90' feet
Power of Motor H.P 10 HP 10 + 2 HP
Required R.P.M 1440 1440
Approx Weight in Kg. Net / Gross 850 / 1050 950 / 1050
Floor Space required 5' X 14' Feet 5' X 15' Feet


WIRE STRAIGHTENING AND CUTTING MACHINES BTI M-013 & BTI M-014 FEATURES:

  1. Fast Feeding & Straightening speed can be 20mtr per min
  2. Double set of feed rollers for smooth feeding
  3. One set of 3pcs Pre-straightener rollers
  4. High speed rotating spinner for getting exact straight wire
  5. Heavy Duty Machines
  6. Built on rigid Steel Fabricated Frame
  7. Low Maintenance with High Productivity
  8. Cutting tools is a simple construction, easy to adjust and change
  9. Quickly and easily adjustable dies in spinner

WIRE STRAIGHTENING AND CUTTING MACHINES BTI M-013 & BTI M-014 APPLICATIONS:

  • Wire Straightening and Cutting Machines BTI M-013 & BTI M-014 Applicatin - TMT Bars
    TMT Bars
  • Wire Straightening and Cutting Machines BTI M-013 & BTI M-014 Applicatin - "U" Bolts
    "U" Bolts
  • Wire Straightening and Cutting Machines BTI M-013 & BTI M-014 Applicatin - "J" Hooks
    "J" Hooks
  • Wire Straightening and Cutting Machines BTI M-013 & BTI M-014 Applicatin - Bright Bars
    Bright Bars
  • Wire Straightening and Cutting Machines BTI M-013 & BTI M-014 Applicatin - Threaded Bars
    Threaded Bars
  • Wire Straightening and Cutting Machines BTI M-013 & BTI M-014 Applicatin - Kitchen wares
    Kitchen wares
