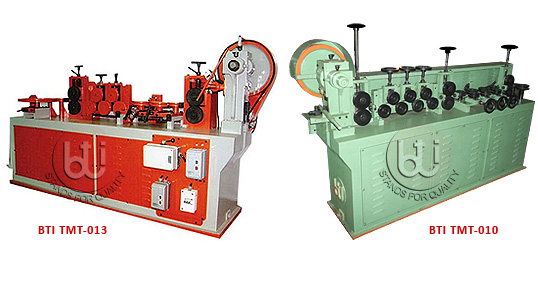

Semi and Fully Automatic TMT or Ribbed Wire Straightening and Cutting Machine BTI TMT-010 and BTI TMT-013

Semi and Fully Automatic TMT or Ribbed Wire Straightening and Cutting Machine BTI TMT-010 and BTI TMT-013
Youtube small Product enquiry

SEMI & FULLY AUTOMATIC TMT OR RIBBED WIRE STRAIGHTENING AND CUTTING MACHINE'S DESCRIPTION:

BTI Semi & Fully Automatic TMT or Ribbed Wire Straightening and Cutting Machine BTI TMT-010, TMT-013, Exclusive for TMT, Ribbed & Special shaped wires. This machine is equipped with leveller straightening system that consists of a Vertical straightening rollers & Horizontal straightening rollers. This machine is provided with pre-straightening rollers.

For feeding of wire machine has two pairs of standard feed rollers for fast & continuous feeding. Machine is fitted with mechanical shear mechanism for cutting. This machine is capable of providing high precision.

SEMI & FULLY AUTOMATIC TMT OR RIBBED WIRE STRAIGHTENING AND CUTTING MACHINE'S FULL SPECIFICATIONS:

MODEL BTI TMT-010 BTI TMT-013
In Thickness of Wire mm 6 to 10mm 8 to 13mm
In Length of Wire to be cut automatically mm

Semi Any Length and Automatically 20 & 40 feet

Semi Any Length and Automatically 20 &40 feet

Feeding Capacity per Min. 70 meter 90 meter
Power of Motor H.P 2+10HP  2+15HP
Required R.P.M 1440 1440
Approx Weight in Kg. Net / Gross

Semi- 1100 / 1300
Auto - 2200 / 2550

Semi- 1500 / 1800
Auto - 2600 / 3000


SEMI & FULLY AUTOMATIC TMT OR RIBBED WIRE STRAIGHTENING AND CUTTING MACHINE'S FEATURES:

  1. 2 sets of feed rollers for smooth feeding
  2. Five/Seven horizontal & vertical straightening rollers
  3. One set of Pre-straightener rollers
  4. Heavy Duty Machines
  5. Built on rigid Steel Fabricated Frame
  6. Low Maintenance with High Productivity
  7. Cutting tools is a simple construction, easy to adjust and change

SEMI & FULLY AUTOMATIC TMT OR RIBBED WIRE STRAIGHTENING AND CUTTING MACHINE'S APPLICATIONS:

  • Semi and Fully Automatic TMT or Ribbed Wire Straightening and Cutting Machine application - TMT Wires
    TMT Wires
  • Semi and Fully Automatic TMT or Ribbed Wire Straightening and Cutting Machine application - Ribbed Wires
    Ribbed Wires
  • Semi and Fully Automatic TMT or Ribbed Wire Straightening and Cutting Machine application - Black Wire
    Black Wire
